Running an off-grid energy system is hugely rewarding, but it can also present unique challenges—especially when everything is configured to be fully independent of the grid. Recently, we supported a customer in rural Ireland who experienced one of those edge-case scenarios where a simple, robust tool made all the difference.
The Problem: Batteries Too Low to Restart the System

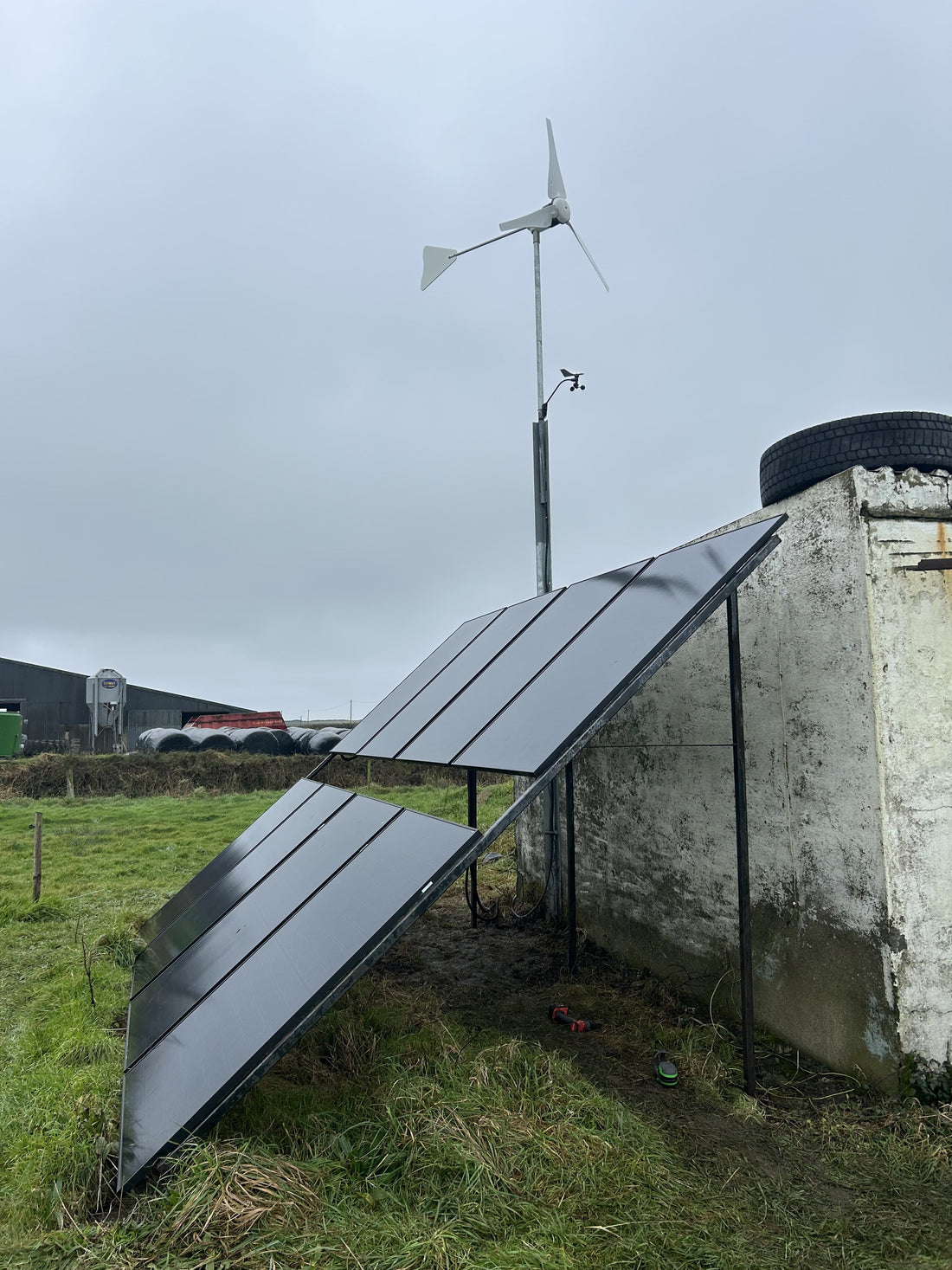

The system in question was a fully off-grid setup using a Pylontech US5000 battery bank paired with a voltacon inverter.
The inverter was configured with:
- No grid connection
- No generator input
- Charging exclusively from wind and solar
Following an extended period of poor generation conditions, the batteries slowly discharged. Eventually, the battery state of charge fell to below 5%, reaching the point where:
- The battery BMS remained powered, protecting the cells, but turned off its output.
- The inverter shut down completely due to low voltage
- No charging path remained, because the inverter itself was off
This is a classic “deadlock” scenario in off-grid systems: the batteries are protected and not damaged, but there is no way to bring the system back online using the inverter alone.
The Solution: A Stand-Alone 25A 52.2 V Charger
To break that deadlock, the customer purchased our 25 amp, 52.2 V LiFePO₄ charger, specifically suited to Pylontech US-series batteries.
Instead of needing a generator or grid connection at home, the customer did something brilliantly practical:
- They removed one US5000 battery
- Took it to a neighbour’s farm
- Plugged the charger into a standard socket in a cow shed
This temporary AC supply was all that was needed.
The Result: System Recovery and Renewable Restart
Using the charger, the battery was brought safely back up from a critically low state of charge to a healthy operating level. Once reinstalled:
- The inverter powered up normally
- The system released the mechanical brake on the wind turbine
- Wind and solar generation resumed
- The batteries could once again charge naturally from renewables
No cell damage, no BMS faults, and no need for invasive intervention—just a controlled, correct recharge.
Why This Matters for Off-Grid Systems
This real-world example highlights an important lesson for anyone running fully off-grid:
If your inverter is your only charging path, you need a backup way to charge your batteries.
A dedicated external charger:
- Works independently of the inverter
- Can recover batteries from very low SOC
- Prevents costly downtime or unnecessary battery replacements
- Turns a neighbour’s socket—even in a barn—into a system-saving lifeline
Designed for Real-World Use
Our chargers are built specifically with scenarios like this in mind:
- Correct voltage profile for LiFePO₄
- Suitable for Pylontech US-series batteries
- Robust, portable, and easy to deploy in non-ideal locations
Whether you’re running wind, solar, or a hybrid off-grid setup, having the right charger available can be the difference between a stalled system and being back online within hours.
If you’re building or maintaining an off-grid system and want to avoid being caught out by low-SOC shutdowns, this is one accessory that earns its keep the moment you need it.
