When working with Pylontech US5000 batteries, the balance wiring layout can cause some confusion—particularly if you’re familiar with the US2000C.
Connector differences: US5000 vs US2000C
-
US2000C:
Uses 3 balance connectors, reflecting its internal structure of three separate cell packs. -
US5000:
Uses 4 balance connectors, because the US5000 is arranged as one larger continuous cell pack, not three sub-packs.
This difference means the balance connector sequence is not directly comparable between the two models. When connecting balance leads or external test equipment, it’s important to follow the US5000-specific cell order, rather than assuming the same progression as a US2000C.

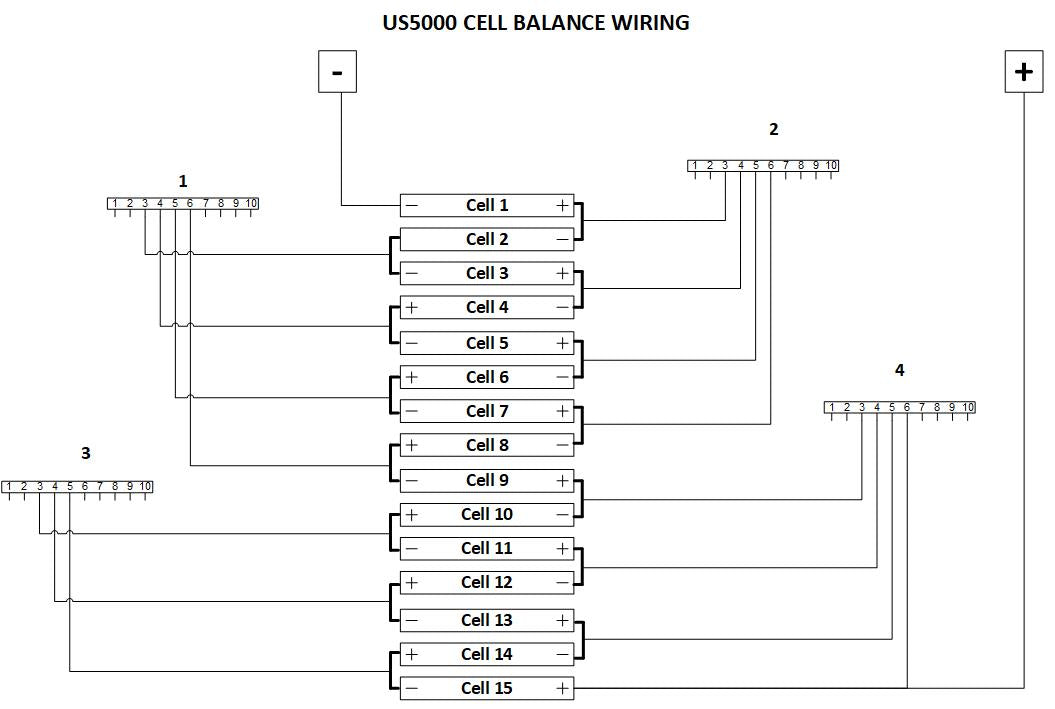

(Refer to the diagram above for correct connector sequencing.)
Important voltage checks before balancing
Before attempting any balancing or recovery work on a US5000 battery, the overall pack voltage should be checked:
- If the entire pack is below 30 V
(≈ < 2.0 V per cell), this may indicate cell-level issues rather than simple imbalance.
In this situation, it is strongly recommended to:
- Verify that no individual cell is below 2.0 V
- Avoid applying aggressive balancing currents until cell health is confirmed
Cells below this threshold may be damaged or unstable and should be assessed carefully.
Cell imbalance limits
For normal operation:
- Cell-to-cell voltage differences greater than ~30 mV are considered excessive
- Differences above this level should be corrected before returning the battery to service
Balancing at this stage may require:
- Individual cell charging
- Controlled discharge techniques
- External balancing equipment rather than relying solely on the internal BMS
