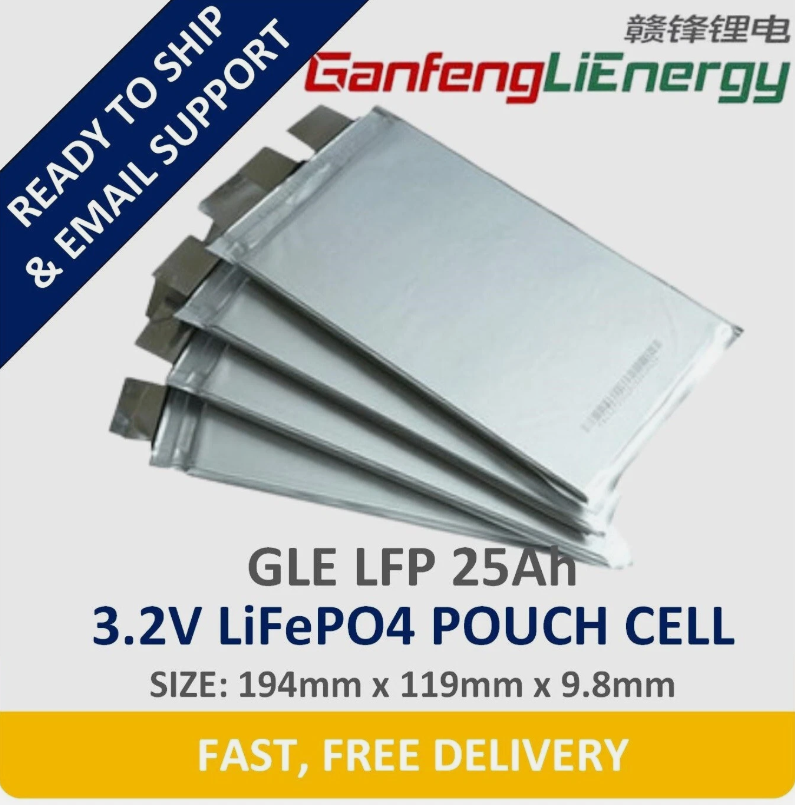

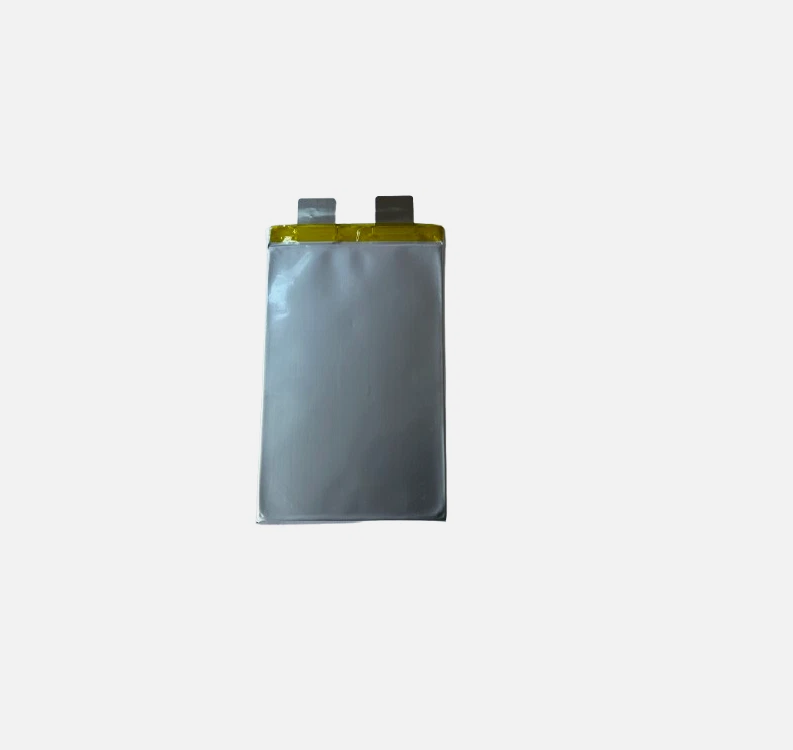

Ganfeng Li-Energy 3.2V 25Ah LiFePO4 cell, 194mm x 119mm x 9.8mm

Specifications:

• Manufacturer: Ganfeng Li-Energy Technology Co. Ltd.
• Model: 10119194-025Ah
• Nominal Capacity: 25.0Ah (at 0.33C discharge, 25±2°C)
• Nominal Voltage: 3.2V
• Voltage Range: 2.5V - 3.65V (0°C < T ≤ 60°C)
• Impedance (1kHz): ≤ 2.0mΩ (new)
• Weight: ≤ 0.48 kg
• Dimensions (L x W x H): Refer to mechanical drawing

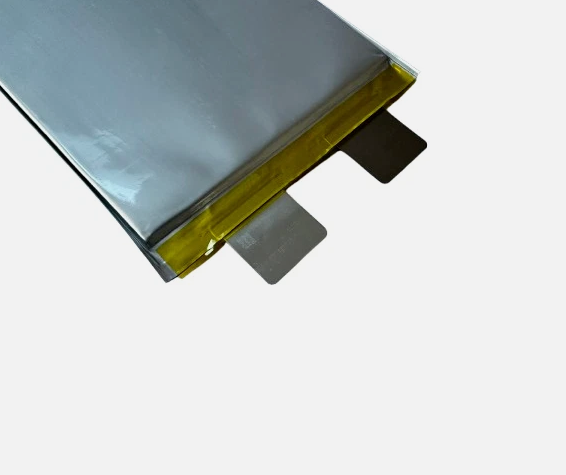

Positive (+) terminal:
Made from aluminium (Al).

Negative (–) terminal:
Made from  nickel-plated copper.

Charging Parameters:

• Standard Charge Current: 0.5C (25±2°C)
• Maximum Continuous Charge Current: 1.0C (25±2°C)
• Charging Method: Constant Current (to 3.65V at 0.5C), followed by Constant Voltage (to 0.05C)
• Temperature Range (Charging): 0°C - 55°C

Discharging Parameters:

• Standard Discharge Current: 0.5C
• Maximum Continuous Discharge Current: 1.0C
• Pulse Discharge Current (Long): 2.0C for 120 seconds, then rest for the same period.
• Pulse Discharge Current (Short): 2.5C for 60 seconds at SOC > 40%
• Temperature Range (Discharging): -20°C - 60°C

Cycle Life and Safety:

• Cycle Life: ≥ 80% capacity retention after 2000 cycles at 1.0C charge/discharge.
• Self-Discharge Rate: ≤ 3.5% per month (at 25°C).

Additional Notes:

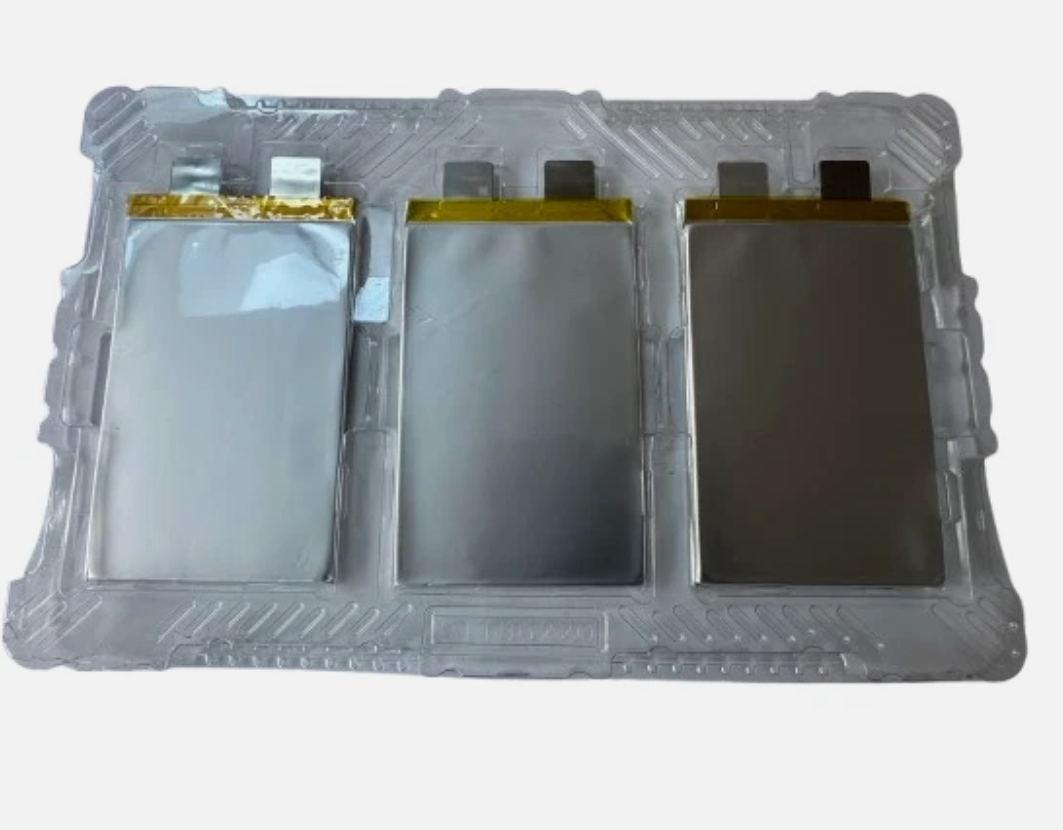

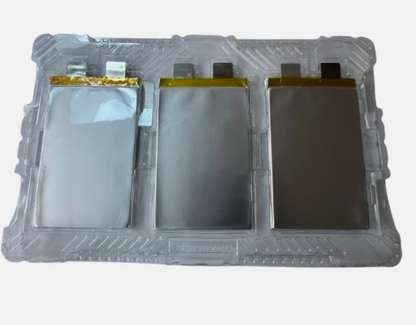

• Cells may have minor marks or cosmetic imperfections from transit; performance is unaffected.
• Datasheet available on request.
• Example configuration: Connecting 2 cells in parallel provides 50Ah; 15 cells in series delivers 2.4kWh at 48V nominal, ideal for energy storage systems (ESS)
