1A Active Cell Balancer for Pylontech US2000 / 3000 Type B or Plus
1A Active Cell Balancer for Pylontech US2000 / 3000 Type B or Plus
Couldn't load pickup availability
Bring your Pylontech Battery back to life with this 1A Active Cell Balancer Kit — stop high-voltage alarms from taking your inverter offline.

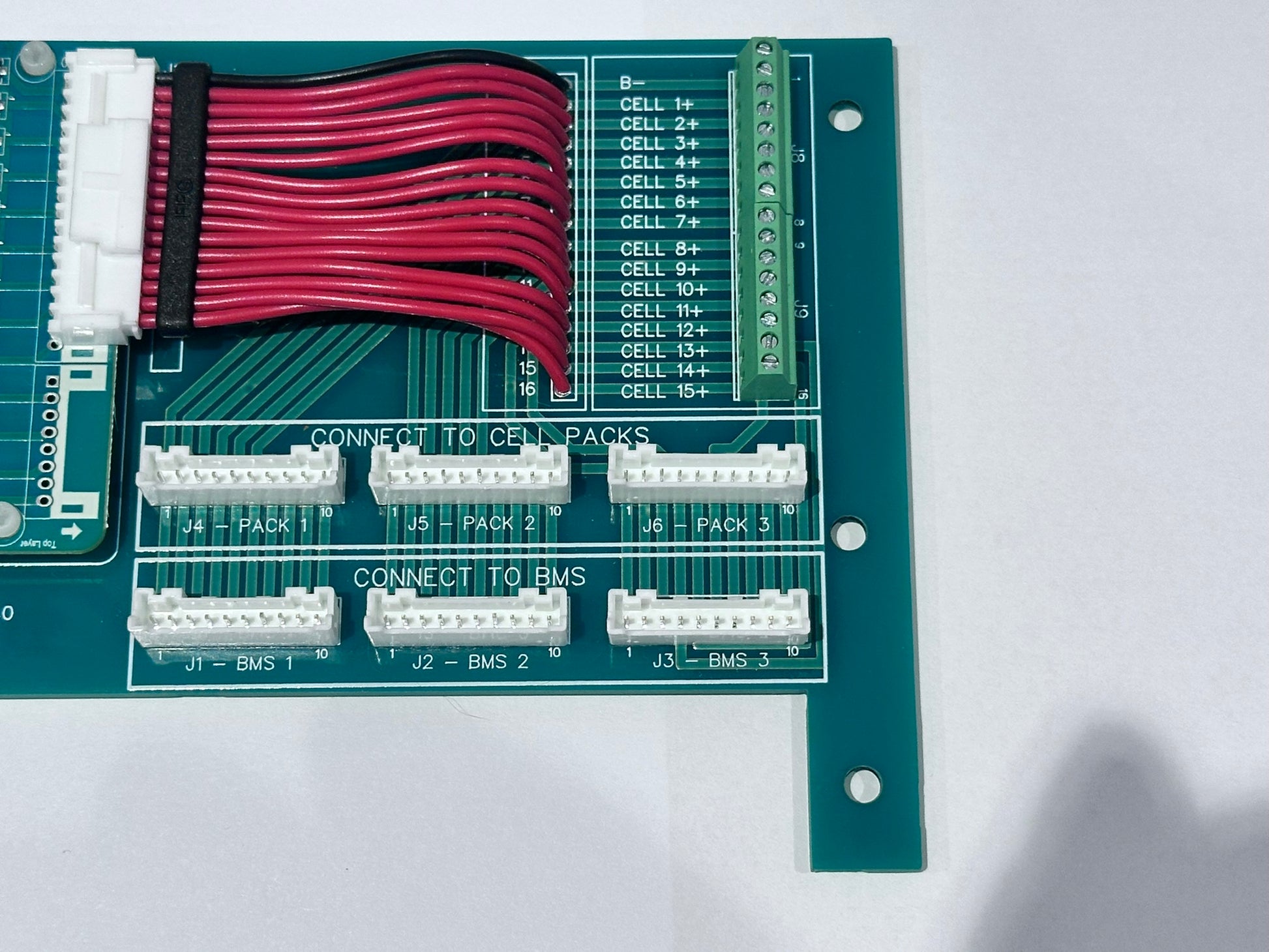

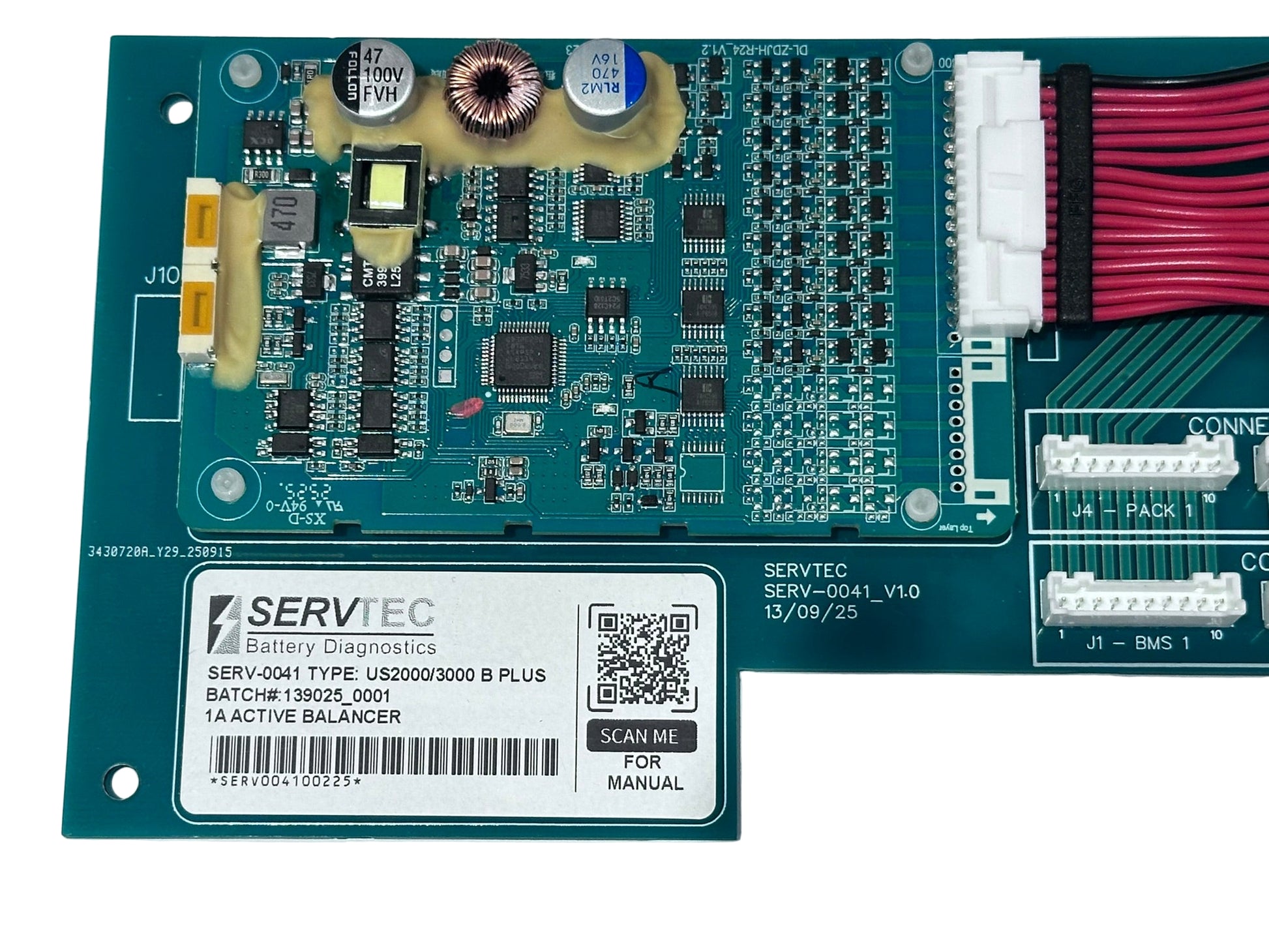

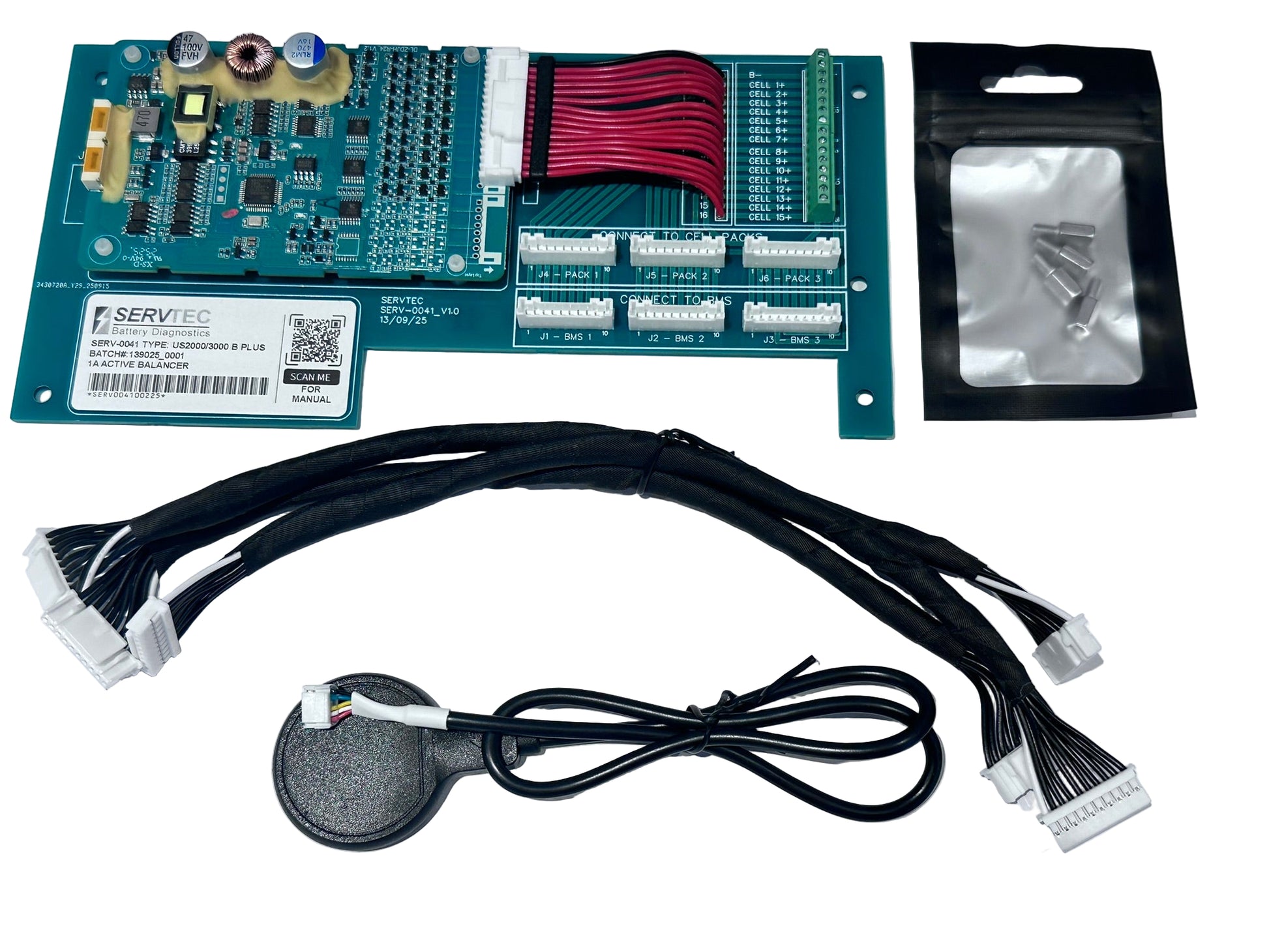

This 1A Active Balancer retrofit kit is designed specifically for Pylontech US2000 / US3000 Type B / Plus batteries. It’s a simple plug-and-play DIY install, supplied with clear instructions so you can get your system running smoothly again.
If your battery is showing a red alarm LED, failing to reach 100% SOC, or suddenly dropping from 50% to 10% SOC, it’s almost certainly caused by cell imbalance. The factory-fitted BMS in Pylontech batteries only uses passive 51 Ω resistors for balancing — meaning it can take days or even weeks to correct a 100 mV difference.

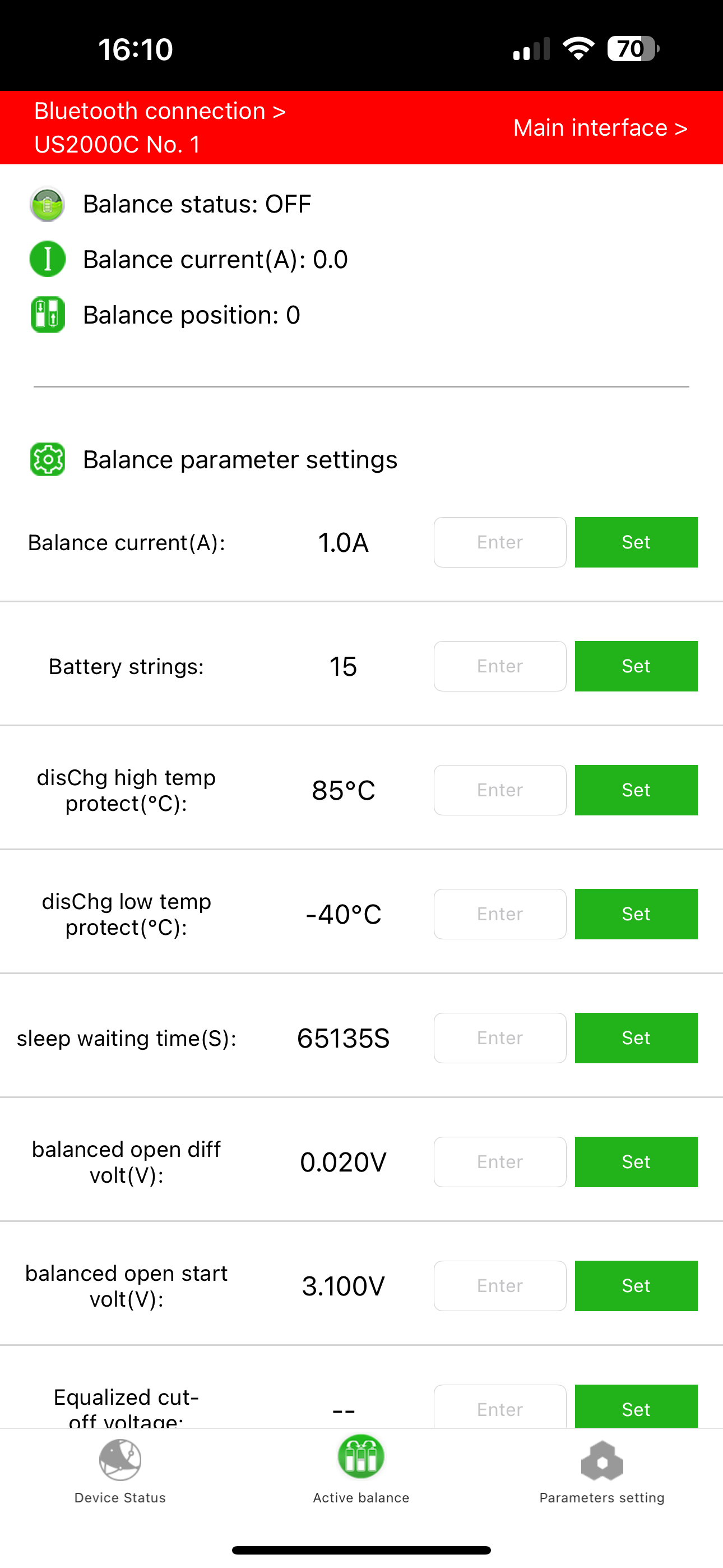

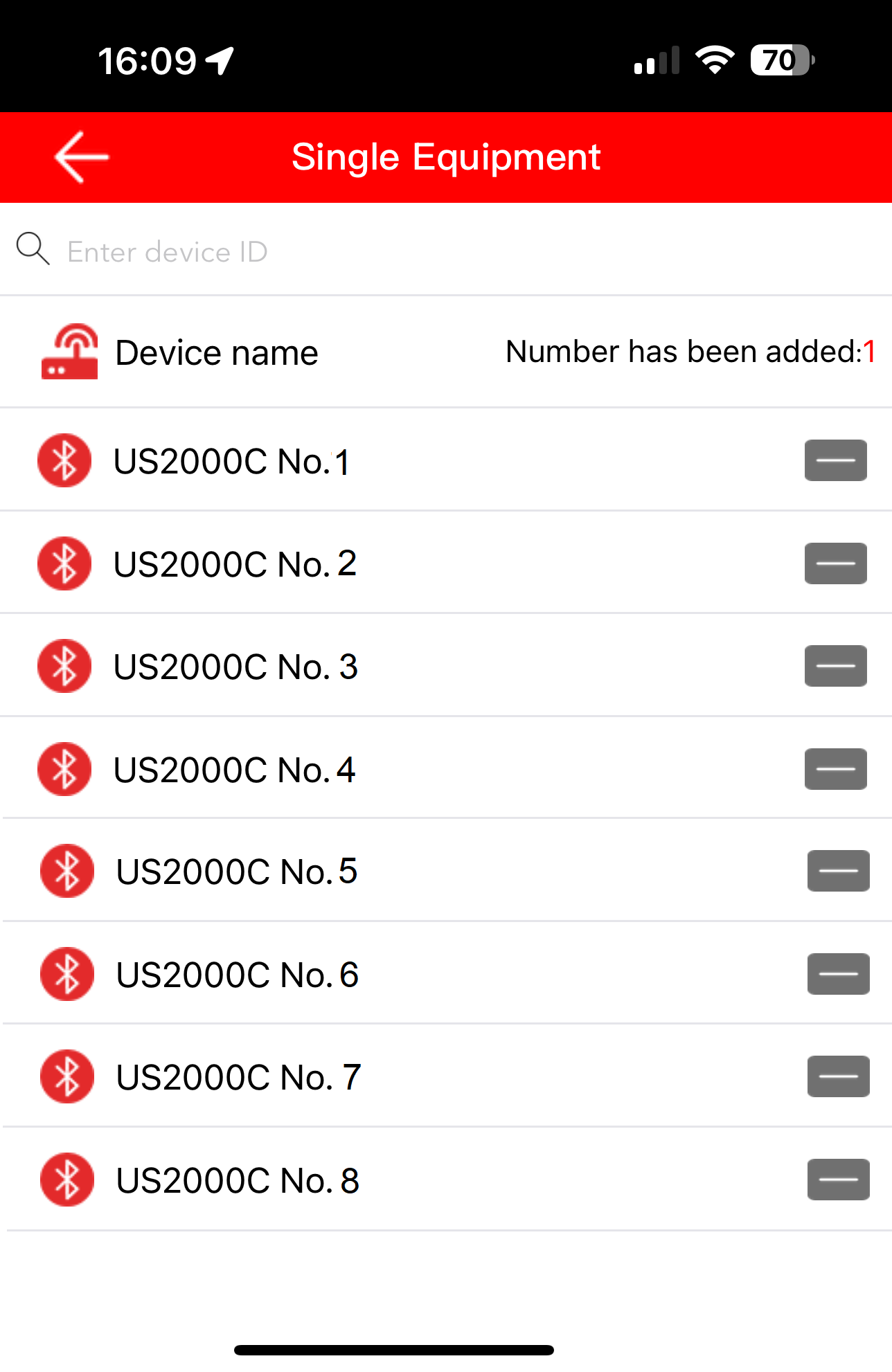

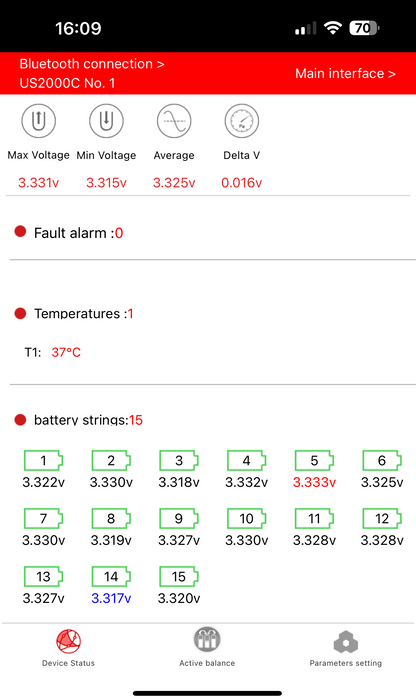

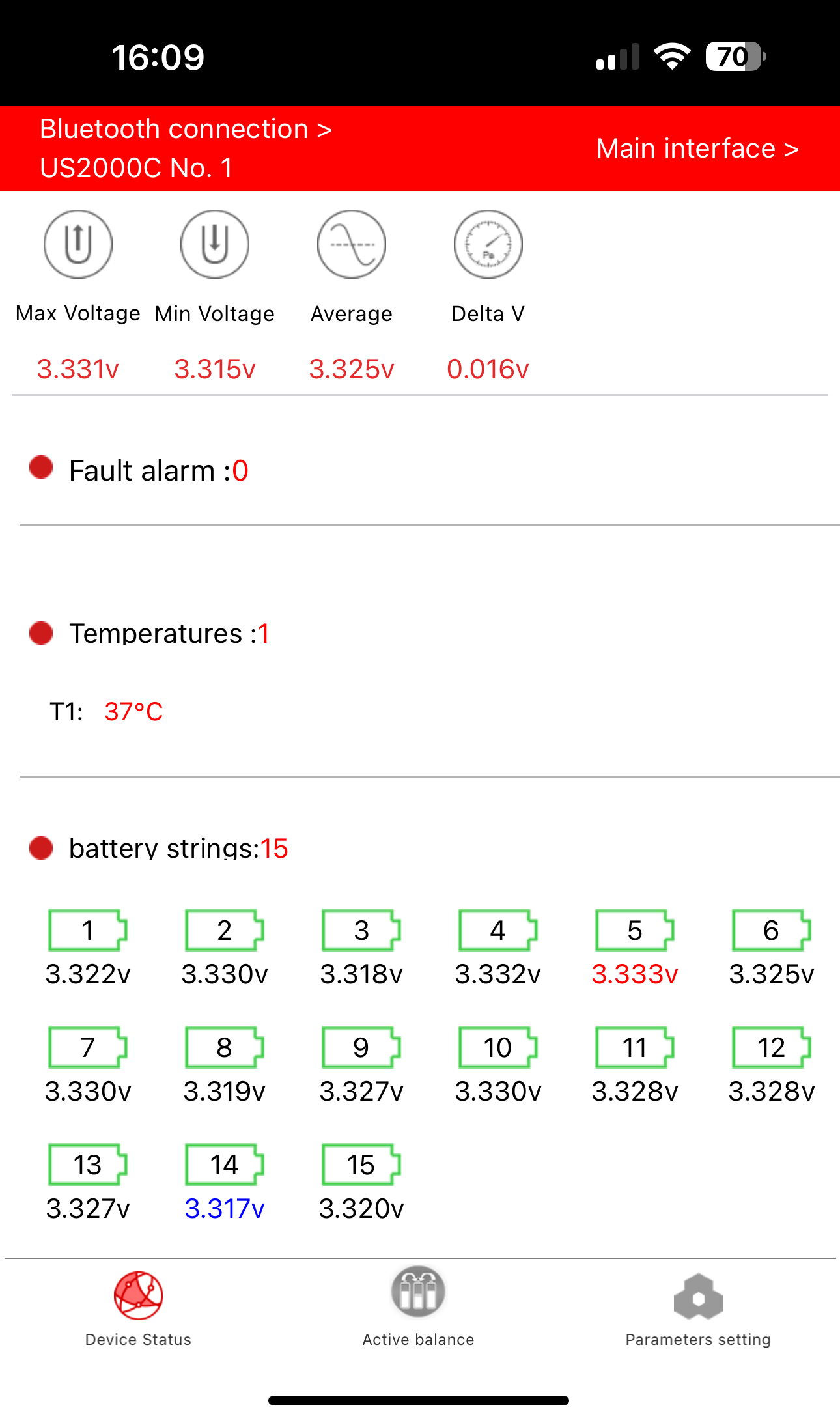

This kit works alongside the built-in passive balancer, providing active 1 A energy transfer between cells for fast, precise correction. It comes complete with a Bluetooth monitoring module, allowing you to view live cell voltages and control settings directly from a free iOS or Android app. You can even set the balance start/stop voltage thresholds and monitor cell voltages in real time from your smartphone.
⚡ Active 1A Balancing: Real-time charge transfer between cells for tight voltage control and a healthy pack.
🔋 Extended Battery Life: Prevents stress and capacity loss caused by imbalance.
🧠 Smart Energy Shuttling: Transfers energy directly between cells — far more efficient than resistor-based passive balancing.
📱 Bluetooth Monitoring & Control: Free iOS/Android app shows cell voltage allows adjustable balance thresholds to be set/
🧩 Easy DIY Install: Plug-and-play design, no soldering required.
🛡️ Safe & Compact: Built-in overheat and reverse-polarity protection in a durable module.
Once installed the active balancer will automatically balance the highest or lowest cell and there is no need to consistently monitor the cell imbalance. It will take a few charge cycles to reach an imbalance of <30mV.
Please contact us if you have any specific questions. We also cell cell balancers for the US2000C and US3000C and US5000 models.
Share

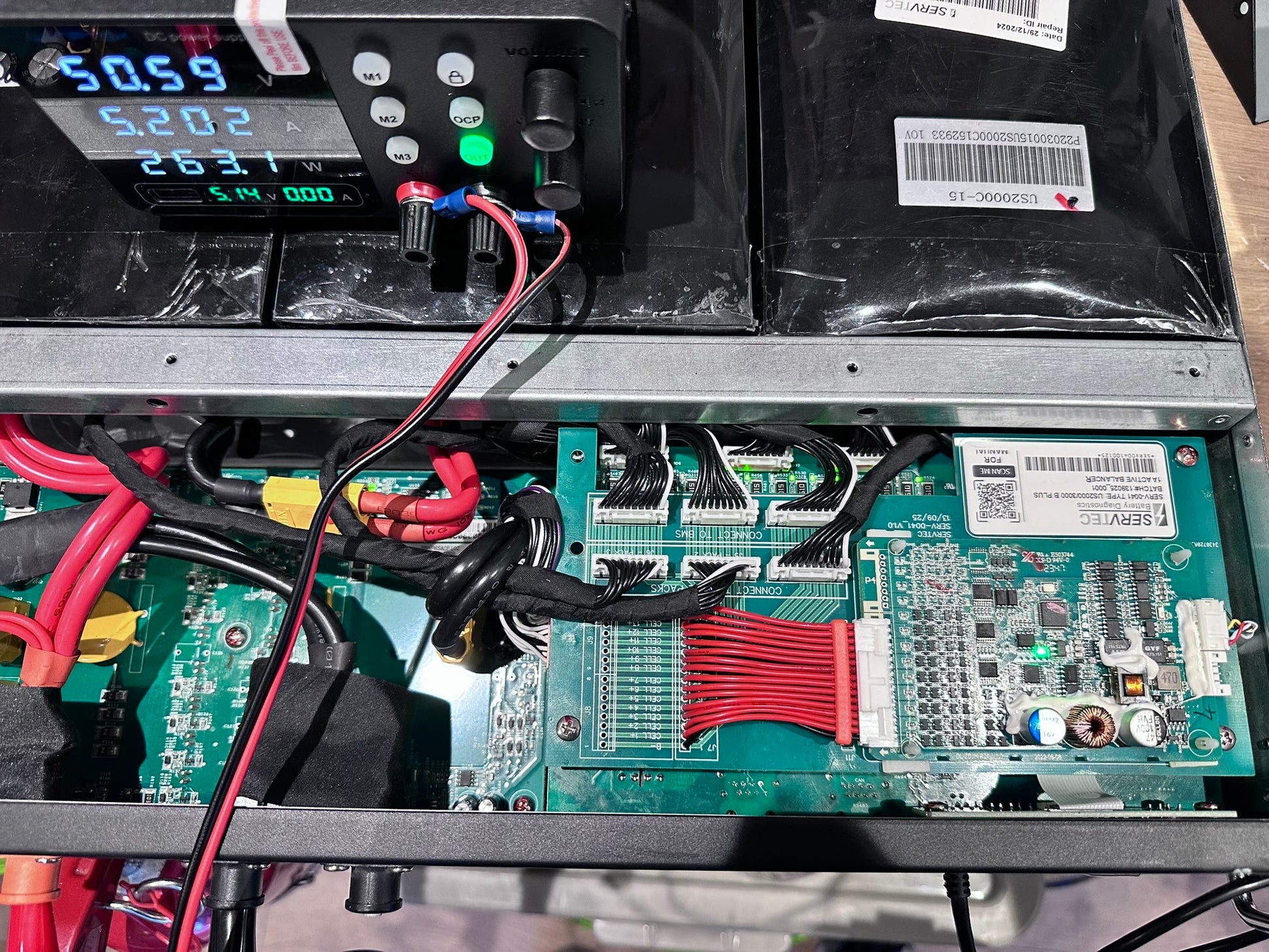

The battery I fitted the balancer to has been back in service for 2 days & it's given it a new lease of life. Previously it was shutting down at 67% SOC due to high voltage on one cell & also shutting down early due to low voltage on another cell. A rudimentary test calculated that it's discharge capacity was around 0.6kWh! The balancer has improved that to around 1.3kWh at 85% DOD which allowing for degradation & round trip losses isn't too bad. The SOH has therefore more than doubled. I reiterate the observation by the earlier reviewer about Pylontech BatteryView readings while the balancer is active... the reading for the 2 cells being balanced will be too high/low (the balancer can be toggled off on the app if you temporarily want a stable reading). I've decided to fit this kit to all my original US2000b batteries because it should give them increased performance & also prolong their life by preventing cell LV & HV which is clearly detrimental to health.
The instructions are excellent & comprehensive which makes the fitting process straightforward. Bluetooth communication works well. I've not put the battery back into service yet but I'll update the review when I do.
Works really well at balancing cells. Some of the cell readings seen in battery view are no longer accurate however whilst the balancer is operating. Small issue since all cell readings can be seen in the balancer APP. Great price for what you get.
The battery I fitted the balancer to has been back in service for 2 days & it's given it a new lease of life. Previously it was shutting down at 67% SOC due to high voltage on one cell & also shutting down early due to low voltage on another cell. A rudimentary test calculated that it's discharge capacity was around 0.6kWh! The balancer has improved that to around 1.3kWh at 85% DOD which allowing for degradation & round trip losses isn't too bad. The SOH has therefore more than doubled. I reiterate the observation by the earlier reviewer about Pylontech BatteryView readings while the balancer is active... the reading for the 2 cells being balanced will be too high/low (the balancer can be toggled off on the app if you temporarily want a stable reading). I've decided to fit this kit to all my original US2000b batteries because it should give them increased performance & also prolong their life by preventing cell LV & HV which is clearly detrimental to health.
The instructions are excellent & comprehensive which makes the fitting process straightforward. Bluetooth communication works well. I've not put the battery back into service yet but I'll update the review when I do.
Works really well at balancing cells. Some of the cell readings seen in battery view are no longer accurate however whilst the balancer is operating. Small issue since all cell readings can be seen in the balancer APP. Great price for what you get.
