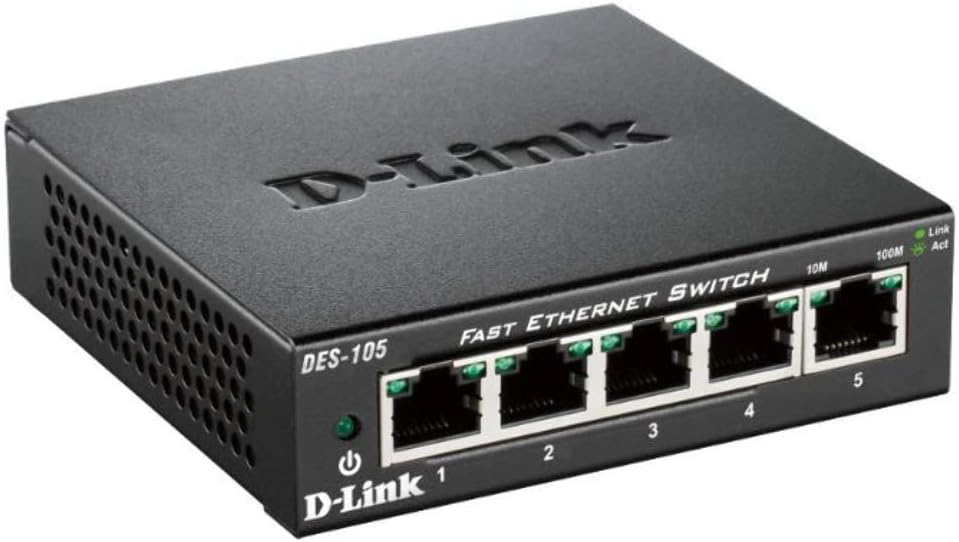

D-Link DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch

Product Overview

The D-Link DES-105 is a reliable and energy-efficient 5-port 10/100 Mbps Fast Ethernet unmanaged desktop switch. Designed for small offices and home networks, it allows you to quickly set up a wired network to connect multiple devices such as computers, printers, and storage devices. Its compact metal housing ensures durability, while its fanless design guarantees silent operation.

Key Features

• 5 Auto-Sensing 10/100 Mbps Ports: Automatically detect network speed and negotiate between 10BASE-T and 100BASE-TX for optimal performance.
• Auto MDI/MDIX Crossover: Eliminates the need for crossover cables; each port can connect directly to a server, hub, router, or switch using standard Ethernet cables.
• Plug-and-Play Installation: No configuration required; simply connect your devices and power on the switch.
• IEEE 802.3x Flow Control: Minimizes packet loss by activating flow control when a port's receiving buffer reaches capacity.
• D-Link Green Technology: Supports IEEE 802.3az Energy-Efficient Ethernet (EEE), reducing power consumption by powering down idle ports.
• Rugged Metal Housing: Ensures durability and reliable performance in various environments.
• Fanless Design: Silent operation, ideal for noise-sensitive areas.

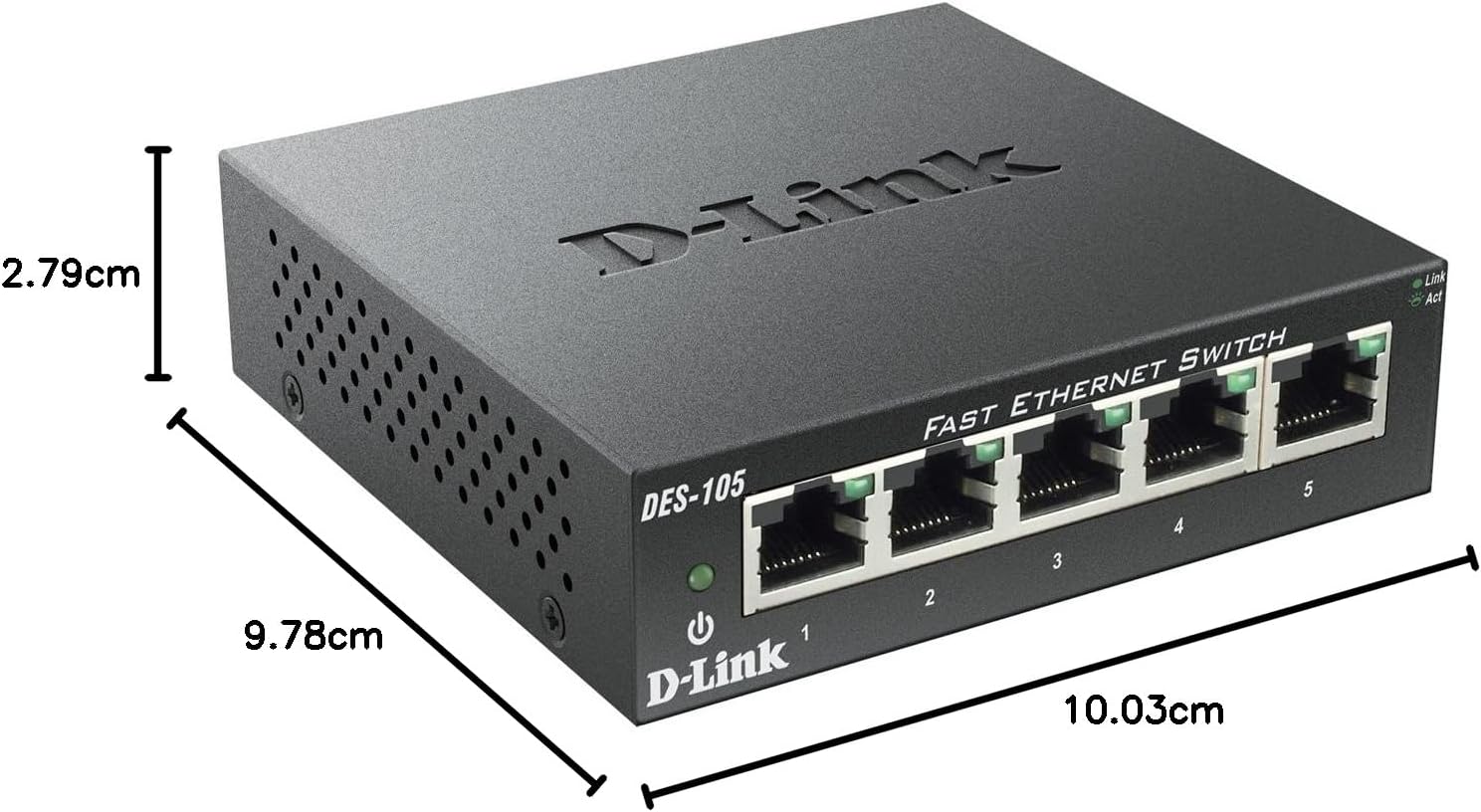

• Compact Size: Suitable for desktop use with dimensions of 100 x 98 x 28 mm

Technical Specifications

• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3az Energy-Efficient Ethernet
• MAC Address Table: 2K entries
• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 148,800 pps per port
• RAM Buffer: 384 KB
• LED Indicators: Per port: Link/Activity; Per device: Power
• Power Supply: External 5V/1A power adapter (UK plug)

Dimensions: 100 x 98 x 28 mm

• Weight: 265 g

What's in the Box

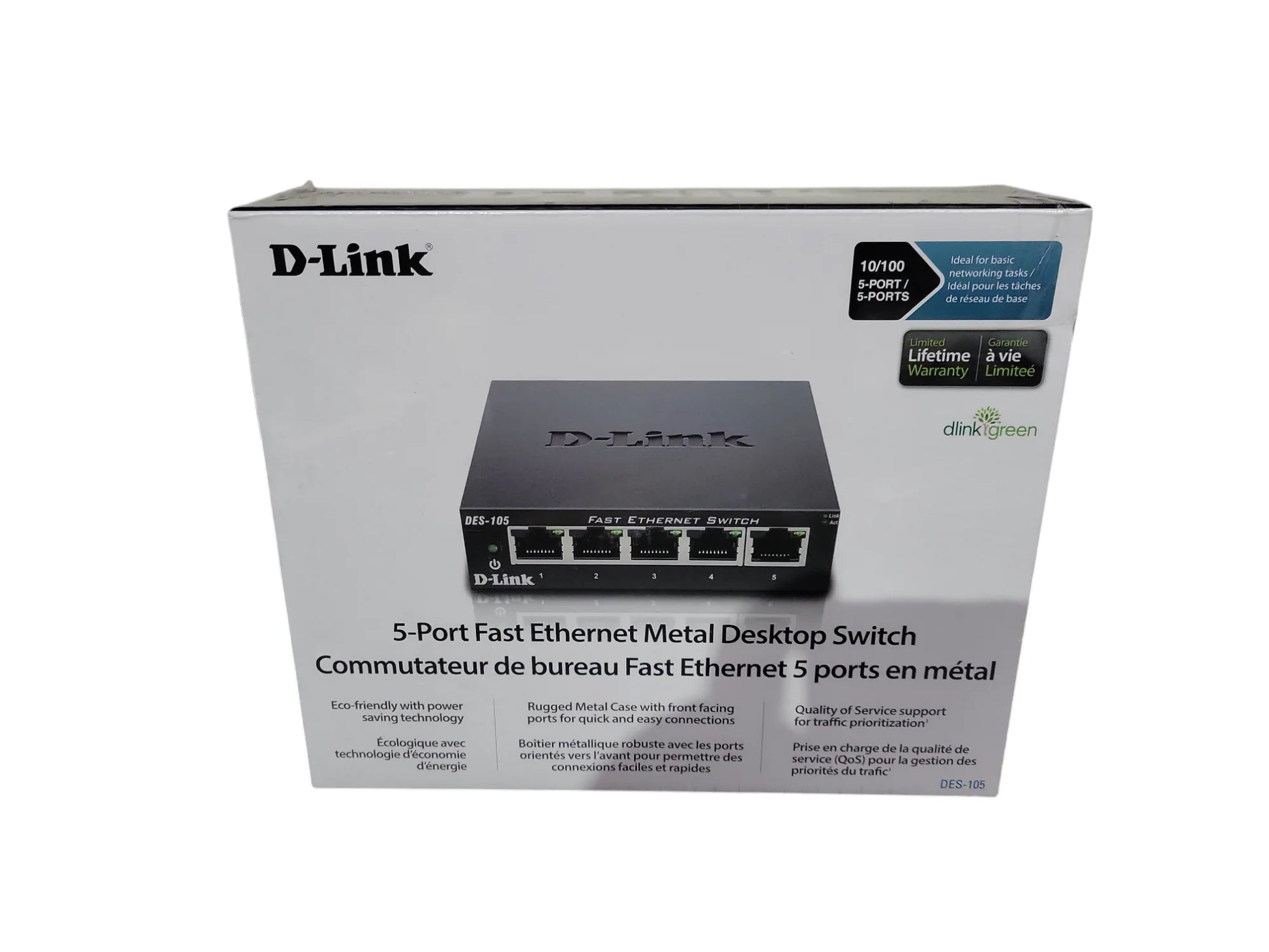

• D-Link DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch
• External Power Adapter (UK plug)
• Quick Installation Guide
• Wall Mount Kit

Ideal For

• Small Office/Home Office (SOHO) networks
• Connecting multiple devices such as computers, printers, and storage devices
• Expanding network capacity without complex configurations
• Energy-conscious users seeking eco-friendly networking solutions
