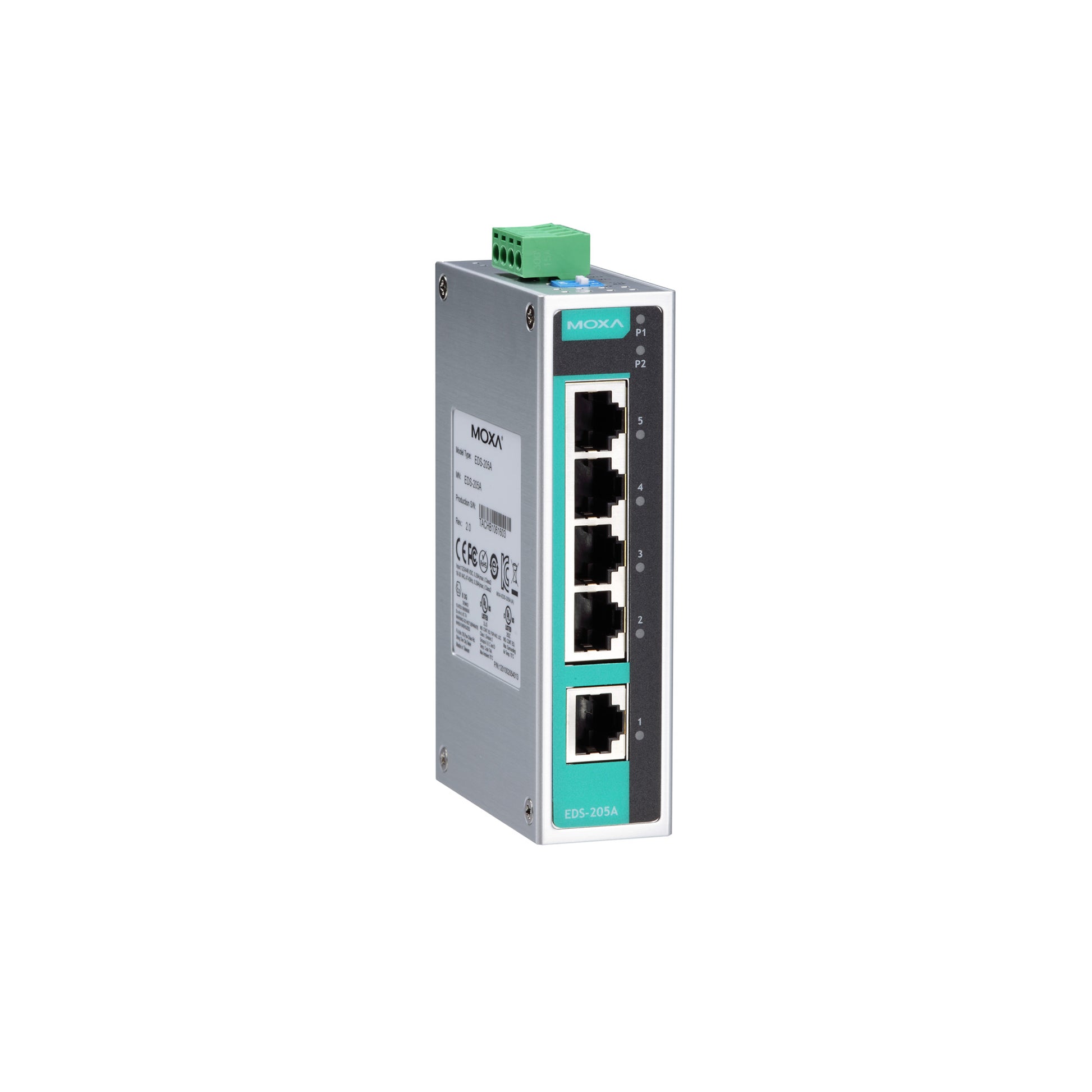

Moxa EDS-205A 5-port 100Mbps Compact Unmanaged Ethernet Switch
Moxa EDS-205A 5-port 100Mbps Compact Unmanaged Ethernet Switch
Regular price
£65.99 GBP
Regular price
Sale price
£65.99 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Introduction
The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/LR/ABS/NK), rail wayside, highway, or mobile applications.
Features and Benefits
- 10/100BaseT(X) (RJ45 connector)
- 5 Ports
- Redundant dual 12/24/48 VDC power inputs
- IP30 aluminium housing
- Rugged hardware design well suited for hazardous locations
- -10 to 60°C wide operating temperature
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Compliant with PROFINET Conformance Class A
Physical Characteristics
- Housing: Aluminium
- IP Rating: IP30
- Dimensions: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
- Weight : 175 g (0.39 lb)
- Installation : DIN-rail mounting
