Pylontech Battery to Inverter BMS Cable Kit – Rewireable 3m CAT6 + RJ45 Crimp Tool

This rewireable Pylontech Battery to Inverter BMS Cable kit is a 3-metre CAT6 lead.  It’s designed for connecting Pylontech batteries to inverters via the BMS communication port.

Product Details:

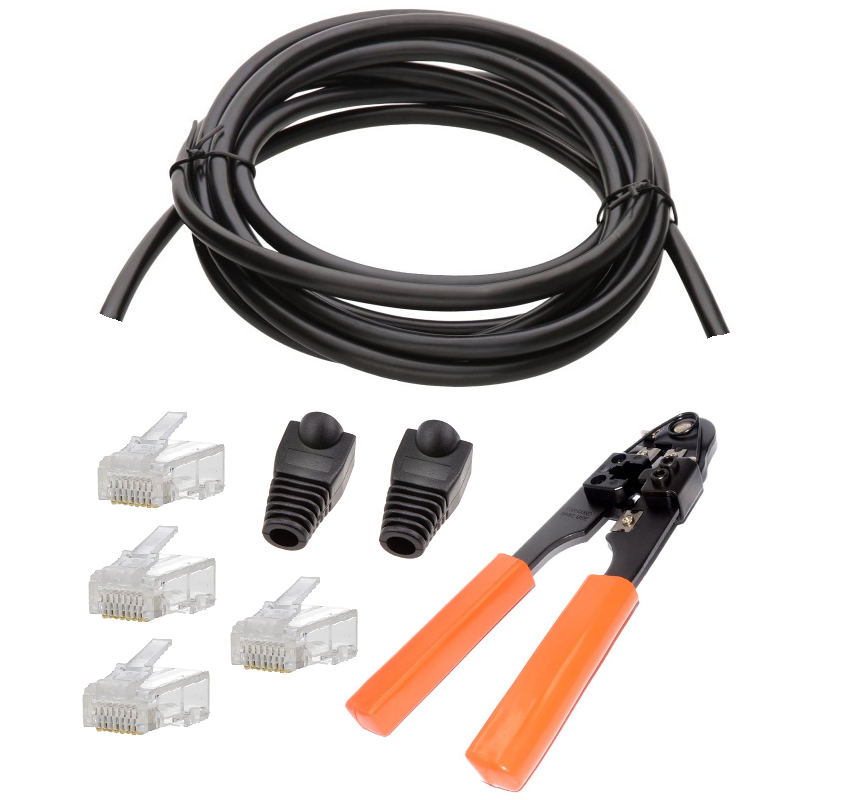

• 3m CAT6 cable

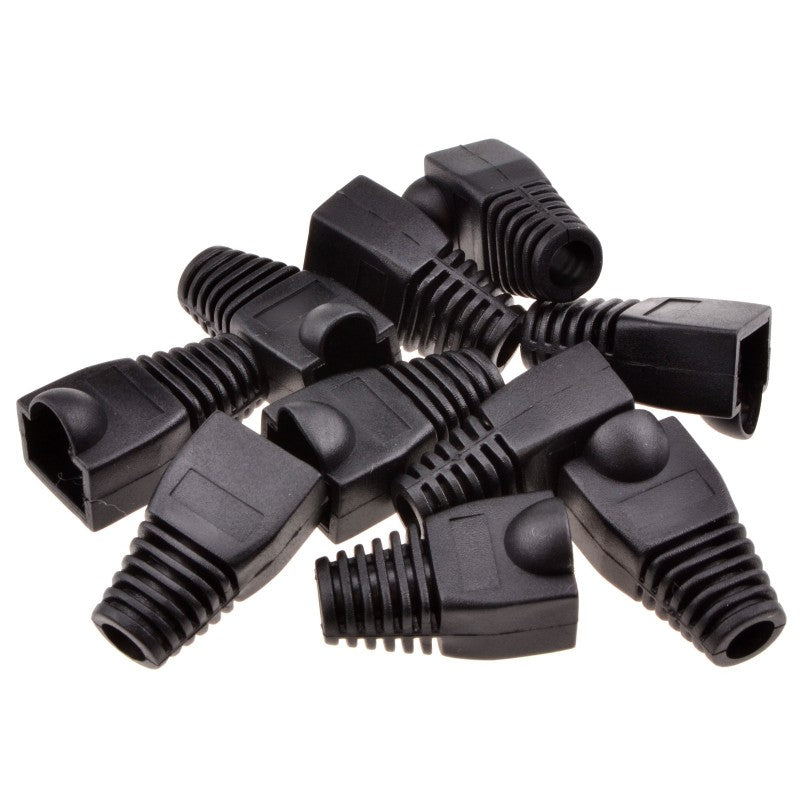

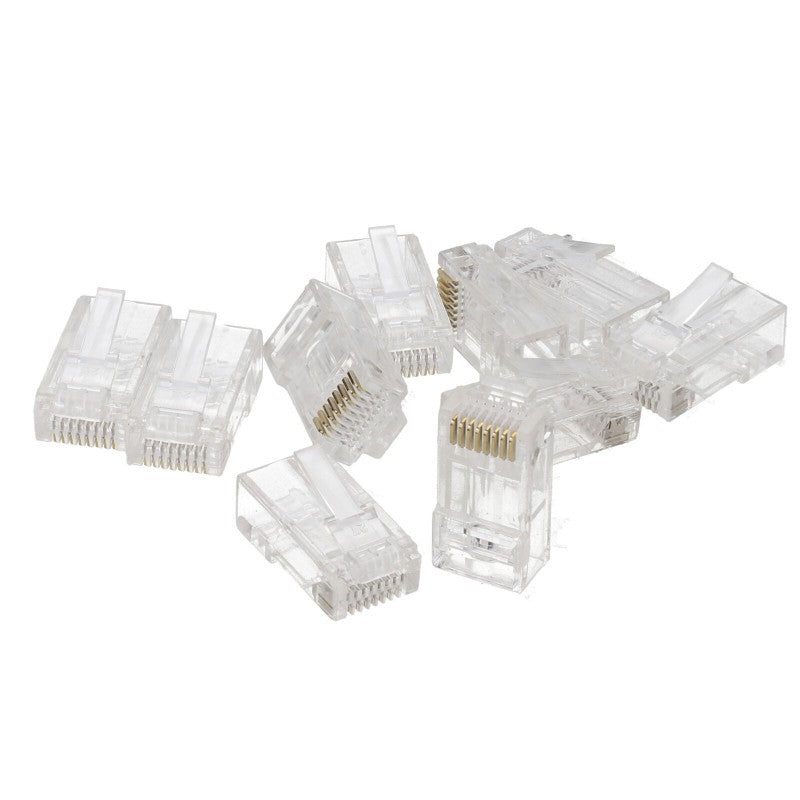

• Includes 4 × RJ45 plugs + 2 x black boots

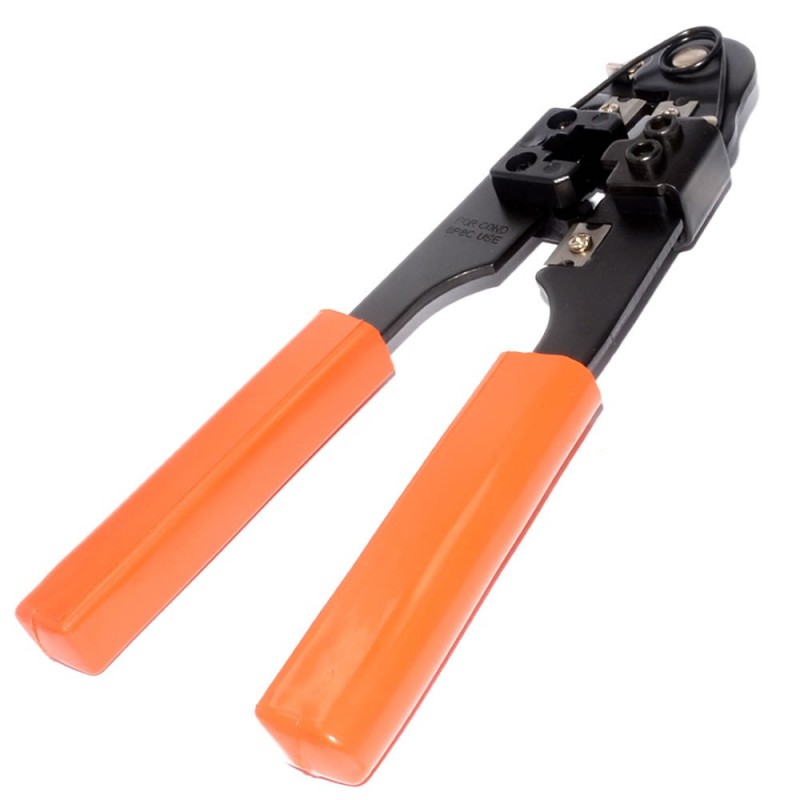

• Modular crimp/strip/cut tool for RJ45 plugs
• Strip round cable, crimp RJ45 modular ends, and trim neatly
• Compatible with Pylontech Type-C pinout (rewire if needed)

No crimp tools required – crimp tool included in this kit, choose correct variant at checkout.

📌 Custom pinouts:
Some inverter manufacturers use different pinouts. The standard Pylontech Type-C A/CAN port pinout is:

• Pin 1: NULL
• Pin 2: NULL
• Pin 3: NULL
• Pin 4: CAN-H
• Pin 5: CAN-L
• Pin 6: CAN-GND
• Pin 7: RS485A
• Pin 8: RS485B

If your inverter requires a different configuration, the cable can be rewired at one end using the included plugs.

💡 Need confirmation of the correct wiring? Contact us with your battery and inverter details, and we’ll help you get the right pinout.

We'll include a quick-start guide with stripping lengths and crimping process.
