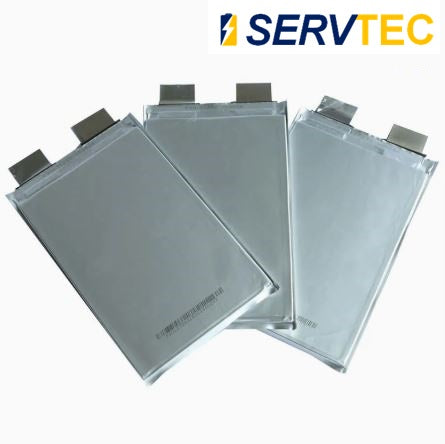

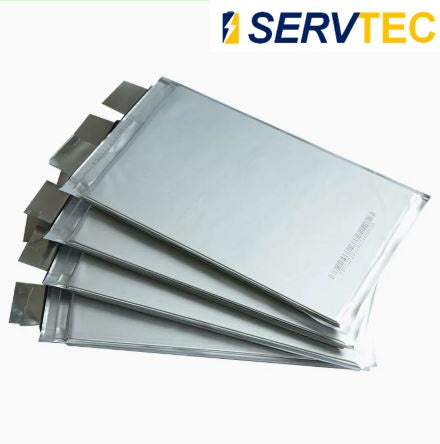

3.2V 25Ah LiFePO₄ Pouch Cell for Pylontech US2000 & US2000C

3.2V 25Ah LFP pouch Cell for Pylontech US2000 / US2000C battery with compatible capacity, max discharge rate and cycle life.

The Pylontech US2000 (B & C) consists of three cell packs.

• Each pack contains 10 × 25Ah pouch cells, arranged in a 2P5S configuration.
• When combined, the three packs form a 2P15S battery system.
• Capacity calculation: 25Ah × 3.2V = 80Wh per cell, ×2 (parallel) = 160Wh per group, ×15 (series) = ≈2.4kWh total capacity.

🔋 Key Features

• Compatible for Pylontech US2000 & US2000C battery packs
• Nominal Voltage: 3.2 V
• Capacity: 25 Ah (minimum)
• Energy per Cell: ~80 Wh
• Cycle Life: ~4,000 cycles (at 1C charge/discharge, 25 °C)
• Operating Voltage Range: 2.5 V – 3.65 V
• Max Charge Current: 1C
• Max Discharge Current: 3C continuous / 4C for 10 s
• Internal Resistance: ≤1.0 mΩ (initial)

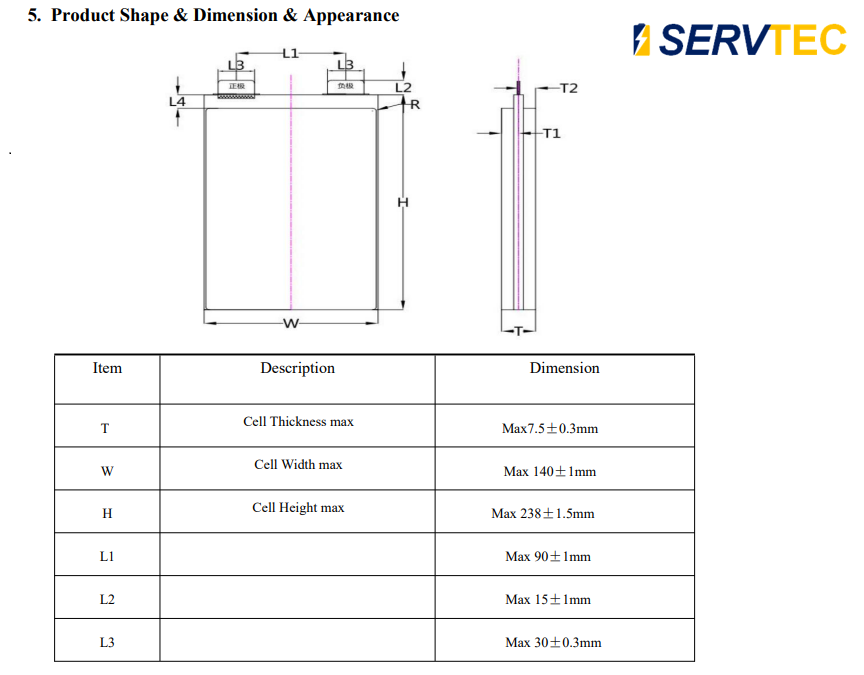

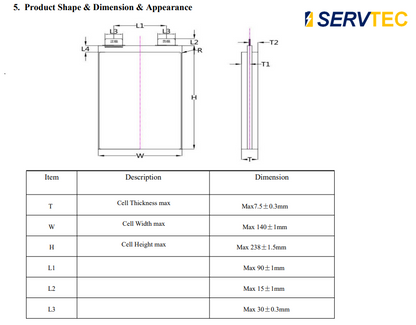

• Dimensions: 7.5 mm (T) × 140 mm (W) × 238 mm (H)
• Self-Discharge: ≤4% per month at 25 °C
• Nickle-copper tab spot-welded to aluminium tab to aid soldering.

⚠️ Important Notes

• These are bare cells and must be voltage-matched with the neighbouring cells before installation.
• Due to the design of the original pack, it is recommended to replace cells in pairs.
  When removing old cells, be aware that heat from adjacent cells can damage the tab seals and may lead to electrolyte leakage.

🛠️ Equipment Needed for Replacement

To safely remove and replace a pouch cell in a Pylontech module, you’ll need:

• 100 W soldering iron (recommended: Weller W101D)
• Solder sucker
• Large diameter solder wick (for de-soldering)
• Solder flux + solder
• Insulation tape (to protect neighbouring cells from short circuits during removal)
• Sharp scalpel knife
• Tin snips or sharp scissors to adjust tab length
• Adjustable bench power supply (for balancing cell voltages before installation)
• Digital volt meter (for verification and testing)

🚚 Shipping Information

• Shipping is available by road within the UK.
• If you require delivery outside the UK, please contact us at info@servtec.co.uk. We will review the relevant regulations for shipping from the UK to your country, as this product contains UN3480 lithium-ion batteries (not contained in equipment) which are subject to strict transport rules.
