Extract Health Data from Your Battery System
Ensure optimal performance and longevity of your battery system with our diagnostic and monitoring cables. Designed for professionals and advanced users, these cables provide real-time insights into your battery's health, performance, and status.
Compatible Battery Models:
Our cables are compatible with a wide range of battery models, including:
-
Pylontech US2000 Series (US2000 & US2000C)
-
Pylontech US3000 Series (US3000 & US3000C)
- Pylontech US5000
With both standard and advanced connection options available, our cables ensure seamless compatibility across various battery models.
Key Features:
-
Comprehensive Battery Diagnostics – Monitor cell voltages, cycle counts, balance status, and overall battery health.
-
Real-Time Monitoring – Compatible with Battery View Software, ICC, MultiSIBControl, PVOutput, and EmonCMS.
-
Plug-and-Play Setup – Works with Windows (98SE to 11) and Raspberry Pi using terminal applications like Minicom.
-
Advanced Handshake Protocol – Detects and reports BMS firmware versions for precise compatibility.
-
Status Indicators – Built-in RX/TX LED indicators for real-time data transmission feedback.
-
Multi-Battery Support – Access data from all linked modules via the master unit.
Monitor Critical Battery Data
Using our diagnostic cables, you can access detailed information, including:
-
State of Health (SOH) – Check individual module health, beyond just overall bank SOH.
-
Cell Voltage & Balance – Ensure optimal performance by monitoring cell voltages.
-
Temperature Monitoring – Track individual cell temperatures to prevent overheating.
-
Cycle & Charge History – View cycle counts, charge/discharge history, and past voltage events.
-
Firmware Version Detection – Identify the current BMS firmware version.
-
Capacity & SOC Data – Track remaining capacity, SOC (State of Charge), and full charge capacity.
Data Logging & Online Monitoring
For advanced users, our cables support integration with online monitoring platforms like EmonCMS & PVOutput. This allows you to: 📊 Graph battery performance data
📡 Send real-time data to an EmonCMS installation
🌍 Upload live statistics to PVOutput
Data Points Collected:
✔ Pack Voltage, Current, SOC, Temperature
✔ Pack Cycles, Capacity, Status, Errors
✔ Individual Cell Voltage & Imbalance
✔ Cell Temperature & Pack Performance
Variants:

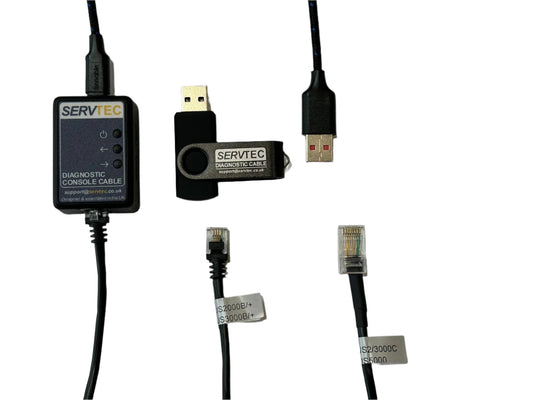

USB Version – A wired solution offering a direct and stable connection to your battery system via USB. Ideal for users who require a reliable plug-and-play experience with minimal setup. Compatible with a range of diagnostic software, it ensures real-time data transmission with LED status indicators for monitoring activity.

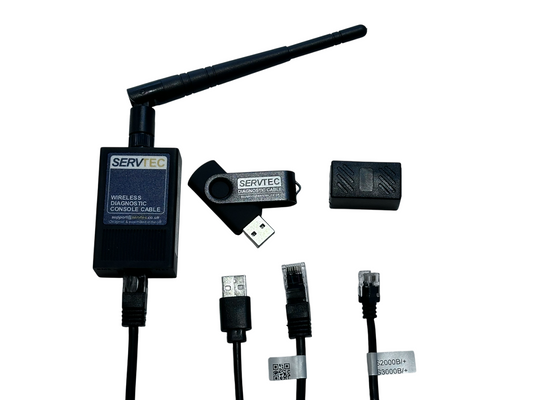

Wireless Version – A hassle-free, cable-free alternative that allows remote access to battery diagnostics via WiFi or Bluetooth. This variant provides flexibility in system monitoring without the need for direct physical connections, making it perfect for installations where wired access is impractical. (Coming April 2025)
What’s Included?

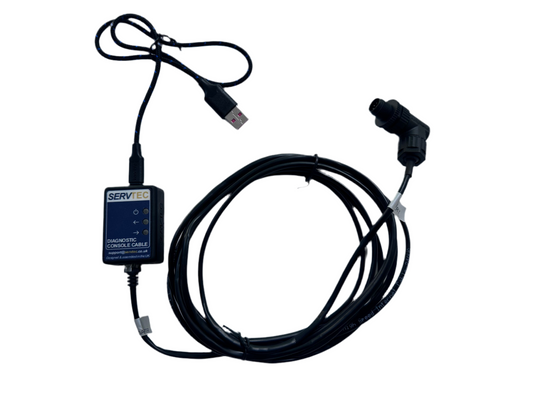

✔ High-Quality USB Diagnostic Cable (Various length options available)
✔ USB Drive with Drivers & Software (Battery View, MultiSIBControl)
✔ Step-by-Step User Guide
✔ Email Support for Setup & Troubleshooting
Reliable & Professional-Grade Diagnostics
Engineered for reliability and accuracy, our battery diagnostic cables are trusted by professionals and DIY users alike. Whether you're troubleshooting, optimizing performance, or expanding your system, these cables provide essential insights into your battery’s health and operation.
Upgrade your battery monitoring today – order your diagnostic cable now!
